S1211M Metal Gear Low Profile 12kg Digital Servo

DM-S1211MBXP-02.jpgItem No.:DM-S1211M

Art No.:5623124

Brief: Metal gears,12kg digital servo,2 ball bearings,low profile style, 25T

Application:1/10 drift rc car,rc plane,rc helicopter,robot



High presicion metal gears made by CNC;

Select torque motor,could compare with import one;

1million life Potentiometer;

expert and experienced in circuit for 10 years;

TOP choice on case plastic,and best mold manufacture

Futaba,JR,SANWA,Hitec compatible.



Item No. DM-S1211MS0911Mjian.jpg

Operating Voltage: 4.8V~7.4V

Speed: 0.11 sec/60deg (6.0v)    0.09sec/60deg (7.4v)

Torque: 12.5kg.cm (6.0v)          13.8kg.cm (7.4v)

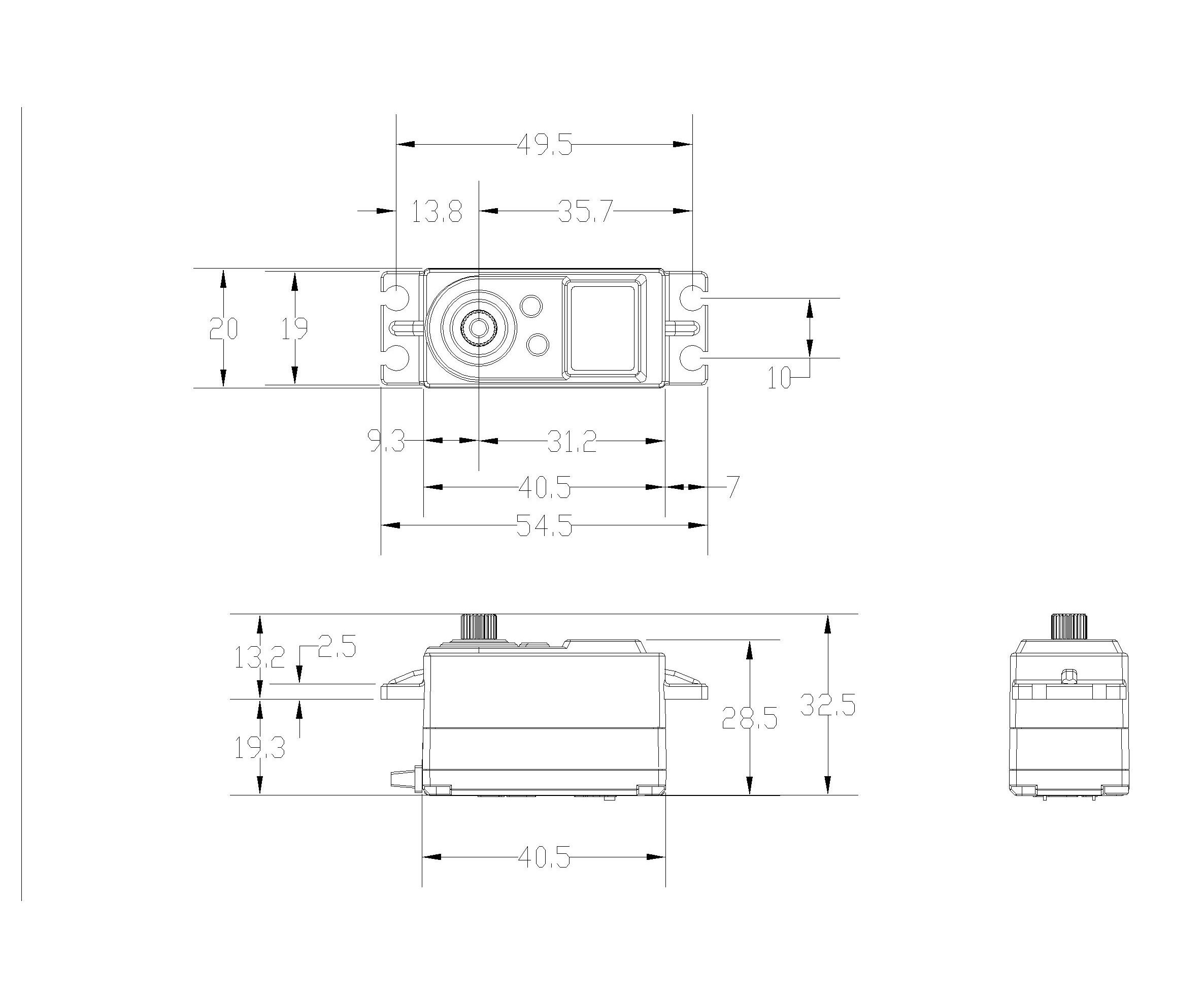

Size: 40.5mmX20mmX28.5mm

Weight: 42gram

Motor: 3 pole Core motor

Gear Train: Metal gear

Ball Bearing: 2BB

Dead band width: 2usc

Interface: (JR)

Wire length: 25cm

Type: Digital,low profile


*Please specify the plug(JR or Futaba connector),or we offer JR plug for you,for it is compatible.Futaba plug.
*Please do read the instruction before you install the servo.Rubber grommet must be used to reduce vibration when you install the servo on GP airplane,GP car or GP boat.
*Please choose suitable servo for you rc model.Torque overload will damage your servo.
*Keep the servo clean and away from dust,corrosive gas and humid air.
*Specification are subject to change without notice

【Packing include】

     1pcsXDM-S1211M  servo

     Accessaries:servo horns,rubber grommets, eyelets and mounting screws

         1 x double sided servo horn       1 x 4-arm servo horn    1 x 6-arm servo horn    1 x round servo disc
         4 x rubber grommets with brass inserts           4 x mounting screws
         1 x mounting bolt 3x 8mm for servo horn installation on the ball raced brass output shaft with 25T-spline drive
     GW: 60 g
