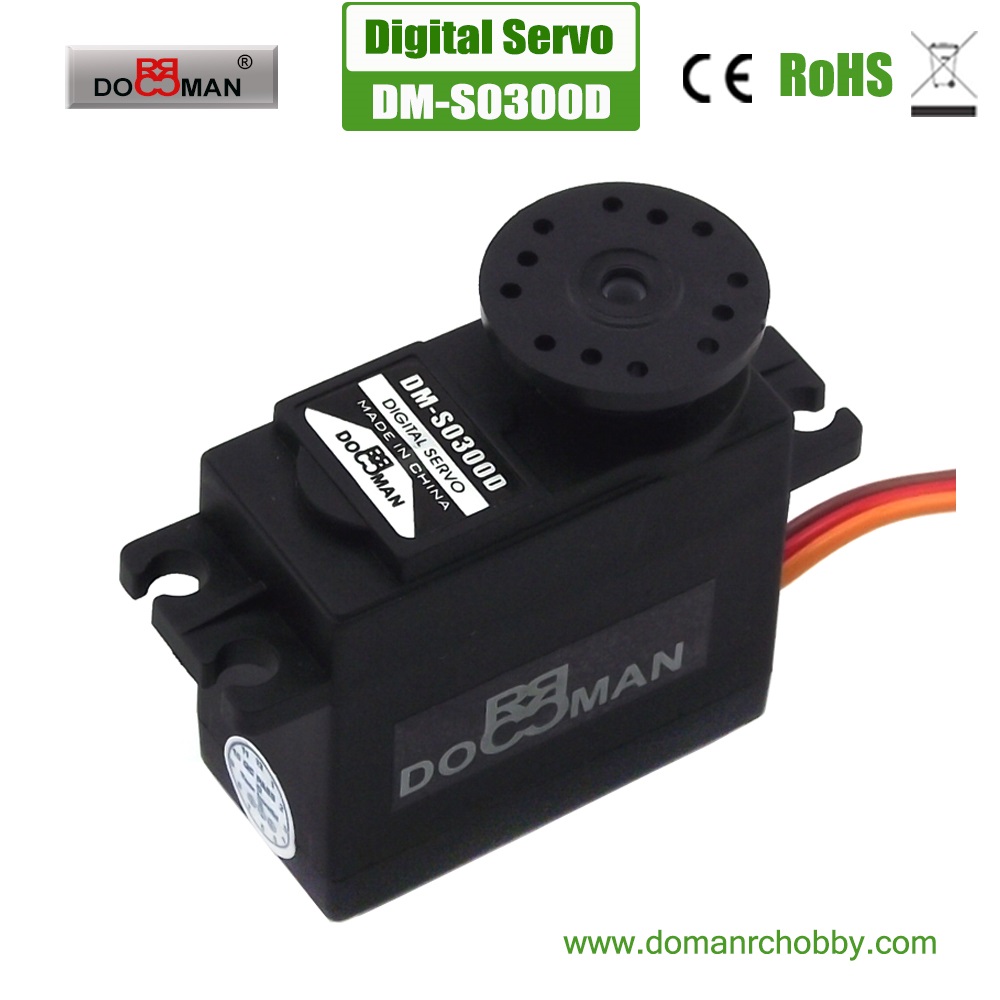

S0300D plastic gear 180degree 3kg digital servo

DM-S0300DX1.jpgItem No.:DM-S0300D

Art No.:5421030

Brief: POM gears,3kg digital servo,180degree,12bit Digital IC,2 ball bearings,output shaft 25T

Application: for 1/10 rc car steering,1/10 rc car throttle,for rc plane,robot and so on









【Features】

High presicion plastic gears;

Select torque motor,could compare with import one;

long  life Potentiometer;

expert and experienced in circuit for 8 years;

TOP choice on case plastic,and best mold manufacture

Futaba,JR,SANWA,Hitec compatible.

【Specifications】

Item No. DM-S0300DS1500MD.jpg

Operating Voltage: 4.8V~6V

Speed: 0.13 sec/60deg (4.8v)    0.11sec/60deg (6v)

Torque: 3kg.cm (4.8v)          3.5kg.cm (6v)

Size: 40mmX20mmX38.5mm

Weight: 40gram

Motor: 3 pole Core motor

Gear Train: plastic(POM gear)

Ball Bearing: 2BB

Dead band width: 4usc

Interface: (JR)

Wire length: 30cm

Type: Digital,2BB,

Rotation angle:180degree(PWM1000-2000us)

Important Notes

*Please specify the plug(JR or Futaba connector),or we offer JR plug for you,for it is compatible.Futaba plug.
*Please do read the instruction before you install the servo.Rubber grommet must be used to reduce vibration when you install the servo on GP airplane,GP car or GP boat.
*Please choose suitable servo for you rc model.Torque overload will damage your servo.
*Keep the servo clean and away from dust,corrosive gas and humid air.
*Specification are subject to change without notice

【Packing include】

     1pcsXDM-S0300D  servo

     Accessaries:servo horns,rubber grommets, eyelets and mounting screws

         1 x double sided servo horn       1 x 4-arm servo horn    1 x 6-arm servo horn    1 x round servo disc
         4 x rubber grommets with brass inserts           4 x mounting screws
         1 x mounting bolt 3x 8mm for servo horn installation on the ball raced brass output shaft with 25T-spline drive
     GW: 45 g
