DM-RS1516MD Metal Gear 15kg low profile 360degree Robotics Servo

DM-RS1516MDX.jpgItem No.:DM-RS1516MD

Art No.:5723156

Brief: titanium alloy gears,15kg digital servo,2 ball bearings,low profile style, output shaft 25T ,360degree continuous rotation

Application:specially design for robot used servo,especially for 17DOF Humanoid robot









【Features】

High presicion titanium alloy gears made by CNC;

Select torque motor,could compare with import one;

1million life Potentiometer;

expert and experienced in circuit for 8 years;

TOP choice on case plastic,and best mold manufacture

Futaba,JR,SANWA,Hitec compatible.

Waterproof

【Specifications】

Item No. DM-RS1516MDS0911Mjian.jpg

Operating Voltage: 5.5V~7.4V

Speed: 0.25 sec/60deg (6v)    0.23sec/60deg (7.4v)

Torque: 14.4kg.cm (6v)          16.5kg.cm (7.4v)(Note:need UBEC if use 2S Lipo)

Size: 44mmX23mmX26.5mm

Weight: 51gram

Motor: 3 pole Core motor

Gear Train: Metal(Titanium gear)

Ball Bearing: 2BB

Dead band width: 2usc

Interface: (JR)

Wire length: 30cm

Type: Digital,low profile

Rotation angle:360degree continuous rotation(PWM500-2500us),when 1000 -1500us,the far to 1500us,servo turn faster,when 1500us -2000us,the far from 1500us,servo turn faster

Important Notes

*Please specify the plug(JR or Futaba connector),or we offer JR plug for you,for it is compatible.Futaba plug.
*Please do read the instruction before you install the servo.Rubber grommet must be used to reduce vibration when you install the servo on GP airplane,GP car or GP boat.
*Please choose suitable servo for you rc model.Torque overload will damage your servo.
*Keep the servo clean and away from dust,corrosive gas and humid air.
*Specification are subject to change without notice

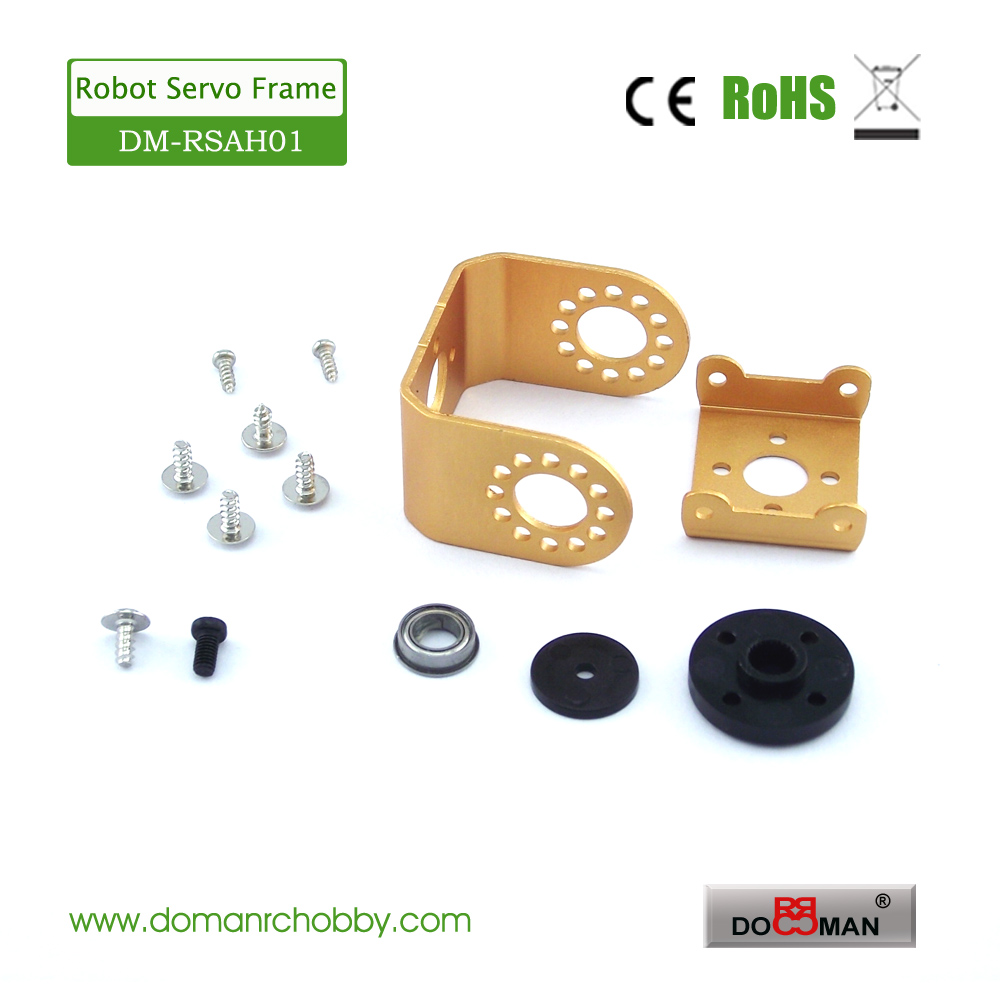

【Packing include】DM-RSAH01Xp03.jpg

1pcsXDM-RS1516MD  servo

     Accessaries(each):
          1 x round servo horn
          1 x long U-arm Frame
          1 x short U-arm Frame
          1 x flange bearing
          1 x washer
          7 x mounting screws (2.6x6  5pcs,2x6  2pcs)
          1 x mounting screw M3 x 8 mm for servo horn

     GW: 70 g
